High temperature heat pump

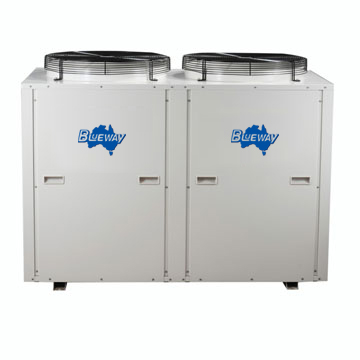

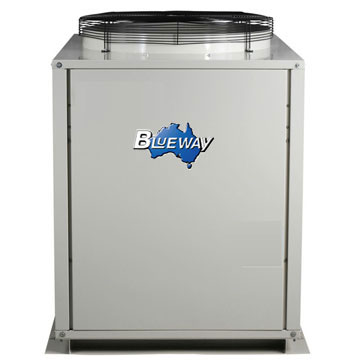

Air to Water High Temperature Heat Pump

Blueway High Temperature Hot Water Heat Pump adopts EVI (Enhanced Vapor Injection)
scroll compressor and the unit is capable of producing hot water with a maximum temperature up to 75℃, which is ideal for both commercial and industrial applications to kill legionella and some other bacteria. It uses R134A refrigerant, which is not only eco-friendly but also reliable and stable especially for the system producing high temperature hot water.

High Temperature Heat Pump Products feature
*. Intelligent control: Micro processor based digital controller with LCD display
*. Durable-more than 10 year’s lifetime
*. 50Hz and 60Hz units all available

Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.
◆EVI Scroll compressor specially designed for high water temperature heat pump
◆R134A refrigerant, eco friendly and reliable for system producing high water temperature
◆Intelligent control: Micro processor based digital controller with LCD display
◆Anti- legionella function on regular intervals
◆Adjustable water temperature setting: 25℃-75℃
◆High efficiency tube-in- shell water heat exchanger with a maximum working water pressure up to
3.2Mpa
◆Alco thermal expansion valve for reliability
◆Inner grooved copper tube for higher efficiency
◆Blue hydrophilic aluminum fins to resist corrosion
◆Automatic defrosting function included
◆Back-up heating element for emergency (optional)

Warranty
* CE & RoHS approval.
* 1 years warranty on the whole unit
* 1% spare parts free of charge for maintenance.

Support
Blueway is capable of manufacturing and supplying even the largest liquid heating and cooling requirement for applications. We are looking forward to find potential partner all over the world to cooperate together. We are insisting on the strategy of:”Client service firstly and continuous development”, we will offer better product with best service to all the customers. For clients’ special design requirement, if the annual order quantity is above: 300pcs. We can offer one special design for you exclusively

High Temperature Heat Pump Features & Highlights

high-temp-heat-pumps-1

  • high-temp-heat-pumps-2EVI Scroll compressor
    specially designed for high water temperature heat pump
  • high-temp-heat-pumps-3Adjustable water temperature setting: 25℃-75℃
  • high-temp-heat-pumps-4Anti- legionella function on regular intervals with a maximum temperature up to 75 C℃, which is ideal for both commercial and industrial applications to kill legionella and some other bacteria.
  • high-temp-heat-pumps-5Intelligent control: Micro processor based digital controller with LCD display
  • high-temp-heat-pumps-6
    High efficiency tube-in- shell water heat exchanger with a maximum working water pressure up to 3.2Mpa
  • high-temp-heat-pumps-7Alco thermal expansion valve for reliability

High Temperature Heat Pump Specification

Model HTHP-
005C		 HTHP-
010C		 HTHP-
015C		 HTHP-
020C		 HTHP-
025C		 HTHP-
030C		 HTHP-
040C		 HTHP-
050C
HP 5 10 15 20 25 30 40 50
Power supply V/Ph/Hz 380-415V/3Ph/50Hz
A20 / W65℃ Heating capacity kW 13.10 26.00 39.00 52.00 65.00 78.00 104.00 130.00
Power input kW 4.27 8.52 12.66 17.05 21.24 25.91 34.21 43.05
Running current A 7.6 15.2 22.6 30.5 38.0 46.3 61.2 76.9
COP – 3.07 3.05 3.08 3.05 3.06 3.01 3.04 3.02
A20 / W70℃ Heating capacity kW 12.71 25.22 37.83 50.44 63.05 75.66 100.88 126.10
Power input kW 4.50 8.99 13.35 17.98 22.40 27.32 36.07 45.39
Running current A 8.0 16.1 23.9 32.1 40.0 48.8 64.5 81.1
COP – 2.82 2.81 2.83 2.81 2.82 2.77 2.80 2.78
Noise level DB(A) 60 64 65 65 65 70 70 70
Rated outlet
water temp.		 ℃ 55
Max outlet
water temp.		 ℃ 70
Ambient
temperature range		 ℃ -10~43
Rated water
flow rate		 L/h 2253 4471 6707 8942 11178 13414 17885 22356
Rated pressure
drop		 kPa 50 50 50 50 50 50 50 50
Water connection inch 1-1/4 1-1/2 2-1/2 2-1/2 3 3 4 4
Controller – Micro processor based digital wire controller with LCD display
External cabinet – Heavy gaugle galvanized steel with powder coating
Compressor Make – Danfoss
Type – Scroll
Nos. – 1 2 3 2 2 3 4 4
Refrig
-erant		 – R134A
Water heat exchanger Type – High Efficiency Tube-in-Shell
Materials – Shell: steel, Tube: Copper
Coil Type – Fin-tube: blue coated aluminum fins + inner grooved copper tube
Tube dia mm 9.52 9.52 9.52 9.52 9.52 9.52 9.52 9.52
Rows Nos. 2 2 2 3 3 3 4 4
Fan & Motor Type – Axial
Direction – Verticle
Fan dia. mm 600 600 710 710 800 850 800 800
Air flow m3/h 6500 13000 19500 26000 32000 39000 60000 60000
Power input W 850 1700 1500 1800 2200 3000 4400 4400
Speed RPM 850 850 850 850 850 850 850 850
Nos. – 1 2 2 2 2 2 4 4
Dimension
(W*H*D)		 Net mm 720*760
*1040		 1420*760
*1040		 1420*760
*1250		 1700*1100
*1820		 2000*1100
*2020		 2300*1100
*2020		 2600*1100
*1960		 2600*1100
*1960
Packing mm 780*820
*1170		 1480*820
*1170		 1480*820
*1380		 1760*1160
*1950		 2060*1160
*2150		 2360*1160
*2150		 2660*1160
*2090		 2660*1160
*2090
Weight Net Kg 85 380 500 570 600 1140 1200 1200
Packing Kg 95 410 535 600 640 1190 1250 1250
Loading 20/40/
40HC		 Set(s) 42/84/84 14/28/28 7/14/14 6/12/12 5/10/10 4/8/8 4/8/8 4/8/8

The above data and specifications are subject to change without notice for product improvement. Please contact us for updated information.
