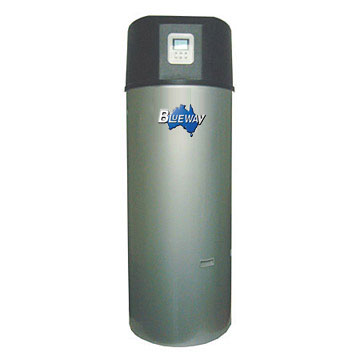

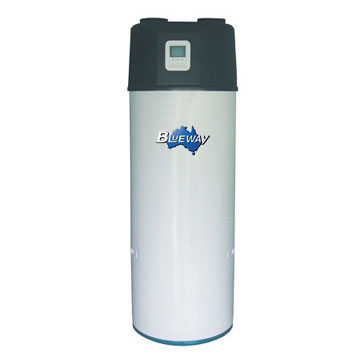

All in One Hot Water Heat Pump

Blueway Integrated Hot Water Heat Pump Water Heater (IHWH) is specially designed for the need of sanitary hot water, applicable for kitchen and bathroom application. It uses CFC free refrigerant to absorb energy from the air, heating the water to a temperature adjustable between 30°C to 60°C. It consumes 70-80% less electrical energy than a conventional electric water heater, as the electrical power it consumes is only to operate the compressor and fan.
Every 1kW electrical energy it consumes will drive the unit to generate 3-5kW heat energy.

Blueway produces two types of designs and both designs ensure no potential risk of contamination to potable water.

TWO TYPES OF COIL HEAT EXCHANGER

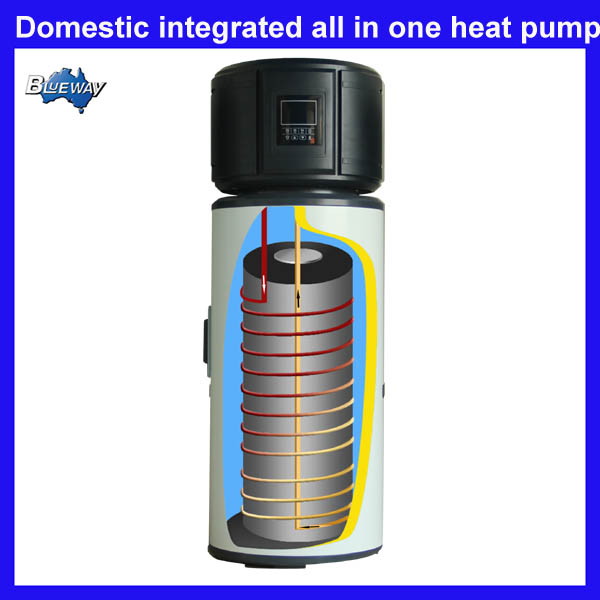

TYPE A: EXTERNAL WARPING COIL HEAT EXCHANGER

(available for water tank capacity 150-300L)

Instead of being immersed in the tank water, the copper pipe heat exchanger is wrapped around the outer wall of the inner stainless steel water tank, which means no direct contact with potable
water.
This design ensures no potential risk of contamination to the tank water due to corrosion or refrigerant leakage, and therefore guarantees the water quality.

TYPE B: INTERNAL COIL HEAT EXCHANGER

(available for water tank capacity 150-300L)
This design adopts two internal SUS 316 pipe coil heat exchangers, one of which is for refrigerant (refrigerant heat exchanger), and the other one is for water (water heat exchanger) and is connected to tap or shower water. The refrigerant heat exchanger will first heat the water stored in the water tank to the setting
temperature.

Then the heated water in the tank will act as a heat transfer medium and transfer heating to the water heat exchanger, in which the shower water or tap water is running through. For this design, the refrigerant heat exchanger does not contact potable water as well, thus ensures the safety of the water to be used in kitchen and bathroom.

Products feature
1. Micro processor based digital controller with LCD display
2. Hot water temperature setting: 30-60°C No potential risk of contamination to potable water
3. High efficiency rotary compressor ensures quiet operation
4. CFC free R134A or R410A refrigerant , without ozone depletion
5. Energy saving, the running cost is only 1/3 of the conventional electric water heaters
6. Safety: complete isolation between water and electricity, no potential danger of any inflammable, gas poisoning, explosion, fire, electrical shock which are associated with other heating systems
7. Easy Installation: be easily installed by a plumber or electrician, no need for a specialist
refrigeration engineer
8. Easy Operation: operates like a simple domestic appliance
9. 50Hz and 60Hz units all available

Warranty
* CE & RoHS approval.
* 1 years warranty on the whole unit
* 1% spare parts free of charge for maintenance.

Support
Blueway is capable of manufacturing and supplying even the largest liquid heating and cooling requirement for applications. We are looking forward to find potential partner all over the world to cooperate together. We are insisting on the strategy of:”Client service firstly and continuous development”, we will offer better product with best service to all the customers. For clients’ special design requirement, if the annual order quantity is above: 300pcs. We can offer one special design for you exclusively.

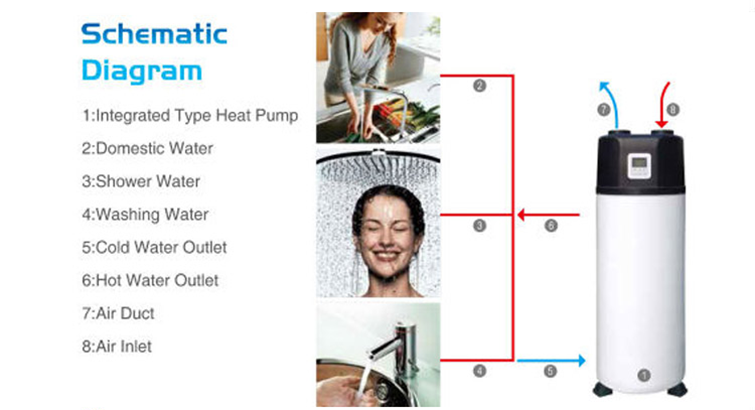

All in One Heat Pump Application

Integrated-hot-water-heat-pump-1

Connection

Integrated-hot-water-heat-pump-2

Features & Highlights

  • Residential-pool-heat-pump-3Silver welding
    Blueway welding technology let the units system more reliable; in most probably it will avoid the refrigerant leakage
  • Residential-pool-heat-pump-4Smart control
    The units apply intelligent control system: Micro processor based digital controller with LCD display
  • Residential-pool-heat-pump-7High efficiency eco-friendly refrigerant, without ozone depletion
  • Commercial-hot-water-heat-pump-6Low noise Fan
    select the axial fans, which can bring heavy, wind with less running noise
  • Integrated-hot-water-heat-pump-9Low noise high effciency, world famous brand compressor

Domestic Integrated Hot Water Heat Pump Water Heater

Model IHP03-200EA IHP03-250EA IHP03-250EB
Power Supply V/Hz/Ph 220/50/1, 220/60/1
Hot Water Performance Heating capacity kW/Hr 2.8 2.8 2.8
Power consumption Watts 780 780 700
COP 3.6 3.6 4.0
Current A 3.39 3.39 3.04
Hot water production litter/hours 60 60 60
Gallon/hour 16 16 16
Tank capacity Capacity Litter 200 250 250
Gallon 53 66 66
Internal tank Materials SUS 304 SUS 304 SUS 304
Insulation thickness mm 50 50 50
Hot Water Temp. Range Rated °C 55 55 55
Max. °C 65 65 65
Noise level dB(A) 48 48 48
Controller LCD digital wire controller
Compressor Type Rotary
Qty Nos. 1
Refrigerant R410A / R134A
Heat exchanger (water side) Type External wrapping coil Internal coils
Qty Nos. 1 2
Condenser fan Type Axial
Airflow m³/h 450
Air direction Horizontal
Material Plastic
Electric Heater KW 2
Hot gas defrost Yes
Anodized rod Yes
Electric expansion valve (EEV) Yes
Relieve/safety valve Yes
Additional coil heat exchanger Optional
Water Connection Inlet Inch G1″
Outlet Inch G1″
Dimmension:
W×H×D
Net mm Ф570×1750 Ф570×2100 Ф570×2100
Shipping mm 645x645x1850 645x645x2200 645x645x2200
Weight Net Kg 47 55 58
Shipping Kg 52 60 63
Stack Layer(s) 1 1 1
Loading Qty 20’/40’/40’HQ Set(s) 27/57/57 27/57/57 27/57/57
Model IHP03-
150HRA
IHP03-
200HRA
IHP03-
250HRA
IHP03-
300HRA
IHP03-
250HRB
IHP03-
300HRB
Power Supply V/Hz/Ph 220/50/1, 220/60/1
Hot Water Performance Heating capacity kW/Hr 2.8 2.8 2.8 2.8 2.8 2.8
Power consumption Watts 730 730 730 730 730 730
COP 3.6 3.6 3.6 3.6 4.0 4.0
Current A 3.17 3.17 3.17 3.17 3.17 3.17
Hot water production Litter/hour 60 60 60 60 60 60
Gallon/hour 16 16 16 16 16 16
Tank capacity Capacity Litter 150 200 250 300 250 300
Gallon 39 53 66 79 66 79
Internal tank Materials SUS
304
SUS
304
SUS
304
SUS
304
SUS
304
SUS
304
Insulation thickness mm 50 50 50 50 50 50
Hot Water Temp. Range Rated °C 55 55 55 55 55 55
Max. °C 65 65 65 65 65 65
Noise level dB(A) 48 48 48 48 48 48
Controller LCD digital wire controller
Compressor Type Rotary
Qty Nos. 1
Refrigerant R410A / R134A
Heat exchanger (water side) Type External wrapping coil Internal coils
Qty Nos. 1 2
Condenser fan Type Axial
Airflow m³/h 450
Air direction Verticle
Material Plastic
Hot gas defrost Yes
Anodized Rod Yes
Electric Expansion Valve (EEV) Yes
Electric Boosting Element 2KW
Relief Valve Yes
Additional coil heat exchanger Optional
Water Connection Inlet Inch G1″
Outlet Inch G1″
Air duct connection mm Φ200
Dimmension:
W×H×D
Net mm Ф620 x 1120 Ф620 x 1370 Ф650 x 1810 Ф650 x 1960 Ф650 x 1810 Ф650 x 1960
Shipping mm 760×730
x1270
760x730x
1520
680×650
x2010
680×650
x2160
680×650
x2010
680×650
x2160
Weight Net Kg 75 87 95 103 95 103
Shipping Kg 79 91 100 108 100 108
Loading Qty 20’/40’/40’HQ Set(s) 24/48/96 24/48/96 27/54/54 27/54/54 27/54/54 27/54/54

Notes:
For Free standing type, the compressor is located in the indoor unit; While for Wall Mounted Type, the compressor
Is located in the outdoor unit.
